Turming Machine TM

FA vs TM?

r/w can -mv L/R (think FA singly linked list, TM doubly)
- TM can write, this is BIG. Previous FA/PDA (any automata) couldn’t write!
infinite tape length
Special states (eg. accept/reject) take effect immidetly

TM Formal Defition

7 tuple, augmented FA:

Q: set of states
$\sum$ : inp alphabet
$Γ$ : Tape alphabet, as many symbols can read frm inp + a few more (inc blank symbol) where $\sum \in Γ$
$δ$ Reads some state + inp symbol, will produce new state as result
$q_{0}$ start
$q_{accept}$ accept
$q_{reject}$ Reject, can never be same as accept

Levels of descriptions of TMs (tm remarks)

We have 3 ways of describing TMs. In each we use the following example: $B = {w # w ∣ w \in {0, 1}^{*}}$ Where w is treated as a string of 0’s and 1’s and # is some seperator symbol (so its string w # string w).

Formally:

Using our formal defition above, where $δ$ is given via drawn diagram (see hw).

Implementation Description:

In english describe how head moves, how data stored on tape. Do ! need to give transition func details

Solution

Starting from the

High-Level:

Psudeo code ignoring implementation. No need to expalin how head is moved or tape managed.

Solution:

for $k > 1$ being position of unique # character. for each i < k check if the values at tape[i] equals tape[i+k]. If equal continue, else reject.

Finally when we hit the end of i+k, if there are more indexes after that reject, else accept.

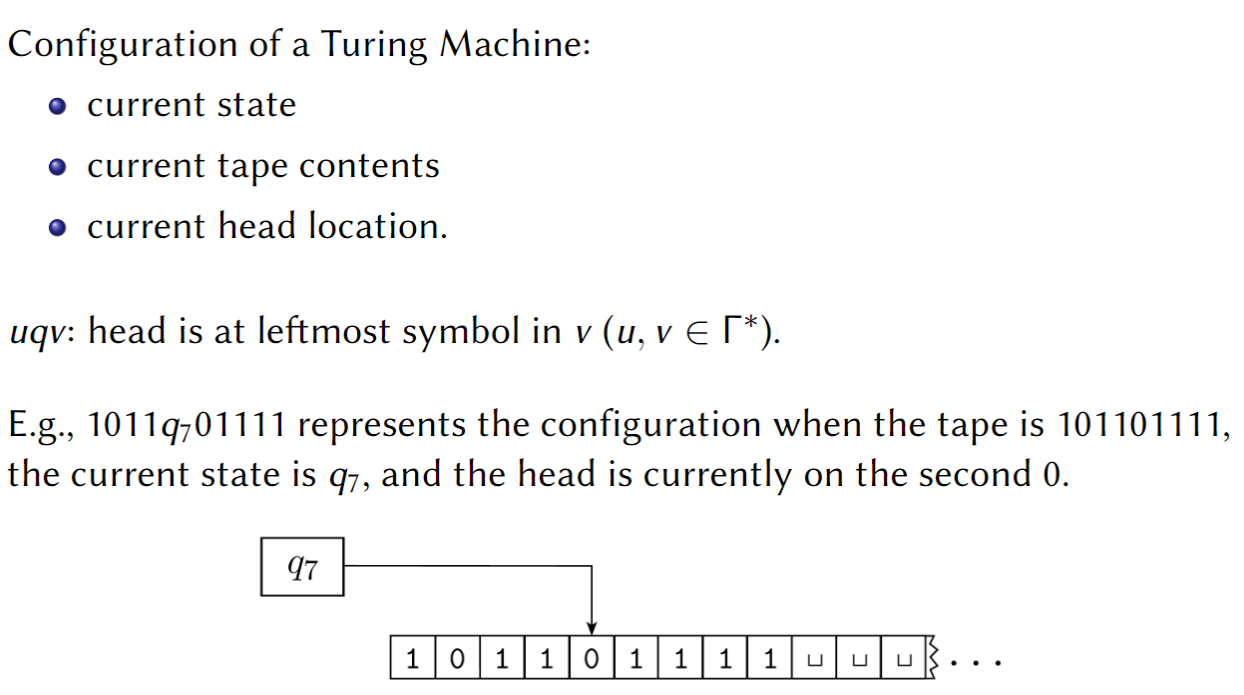

Config of turning mch (Will be on midterm+Final!!!)

Must know 3 things at all moments:

Current state (position on tape)
tape contents (entire infinite stack)
Current head loc (value at position of tape)

Can think like hashset, should know key + value at all times and

Start config of M on inp w: $q_{0}$ w

For slide 11: Delta func says if state $q_{i}$ read b, then replace b with c and mv head left. We then add the L to show

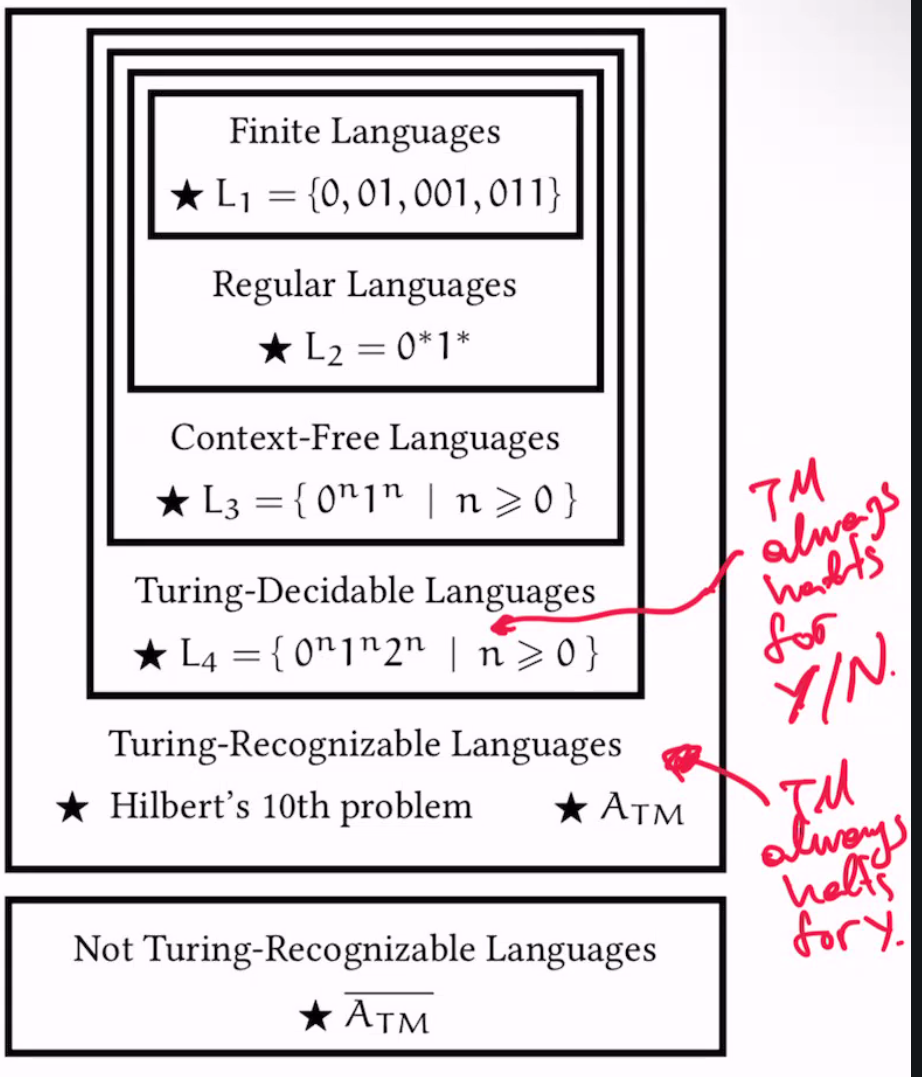

Turing recognizable vs decidable langauge

Decidable: Assume determinicst TM, TM accept if inp belongs to language. both yes & no are always answers by the TM
Recognizable: Situation whr TM always holds for YES ans, if w belong to lang? M always accept,

Ex 3

A = {0^{2}^{n} ∣ n \geq 0}

Language consits of al 0s, which length = pow 2. so for our psudeo code we js hv str.len % 2 == 0? In that sense it’s a bitwise OR, us looking @ the last binary digit 0 ? 1 : false,true

In this sense, we can just do the same thing by

Thinkg hw u wuld solve using psudeo code! Once find? translate back 2 a TM.
