Finals notes

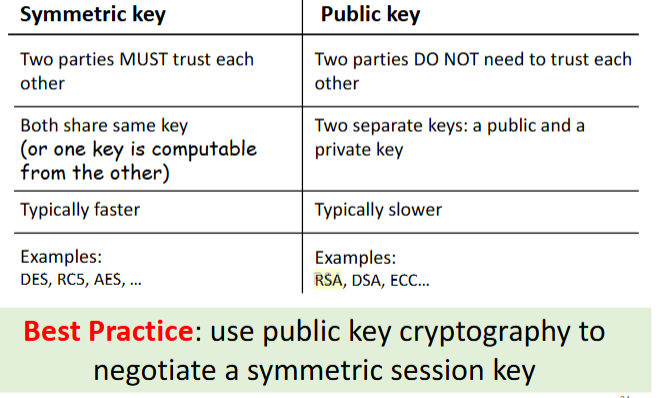

symmetric/asymmetric

public easier 2 nego key, symm is decentralized

• symmetric: Dependent on one key to encrypt/decrypt (one time pad)
• asymmetric: Private/public key TLS handshake, slower
• DES (Data Encryption Standard)
  • Can be brute forced
• AES (Advanced Encryption Standard)
  • Longer key sizes + safer + faster than DES
• Why do we need to use asymmetric crypto to negotiate a session key?
  • Asymmetric encryption is slow, so it’s common to use asymmetric encryption to pass a symmetric encryption key to the other party and use something fast like AES to transfer data securely

Number theory

Modulo and Conguruent mod

• $r$ is the remainder of $a$ divided by $n$, written $r=a\mathrm{mod}n$ Example: $12=2\times 5+2\Rightarrow 2=12\mathrm{mod}5$
• $a$ and $b$ are congruent modulo $n$, written
  $a\equiv b\mathrm{mod}n$, if $a\mathrm{mod}n=b\mathrm{mod}n$

Example: $7\mathrm{mod}5=12\mathrm{mod}5\Rightarrow 7\equiv 12\mathrm{mod}5$

• relative prime
  • 2 ints no common factors other than 1 aka gcd(a,b)=1

Mod proterties

• Commutative laws
  • $(w+x)\mathrm{mod}n=(x+w)\mathrm{mod}n$
  • $(w\times x)\mathrm{mod}n=(x\times w)\mathrm{mod}n$
• Associative laws
  • $[(w+x)+y]\mathrm{mod}n=[w+(x+y)]\mathrm{mod}n$
  • $[(w\times x)\times y]\mathrm{mod}n=[w\times (x\times y)]\mathrm{mod}n$
• Distributive law
  • $[w\times (x+y)]\mathrm{mod}n=[(w\times x)+(w\times y)]\mathrm{mod}n$

Factoring

Example: Factor 84

$84÷2=42\Rightarrow 2$ is a factor
$42÷2=21\Rightarrow 2$ again
$21÷3=7\Rightarrow 3$ is a factor
7 is a prime → done So:
$84=2^2\times 3\times 7$

Euler’s totient

Counts the numbers lesser than a number say n that do not share any common positive factor other than 1 with n or in other words are co-prime with n.

Formula:

• Let $n=p_1^{a_1}{p}_2^{a_2}\cdots p_r^{a_r}$ be the prime factorization of $n$.

$$\phi (n)=n\left(1-\frac{1}{p_1}\right)\left(1-\frac{1}{p_2}\right)\cdots \left(1-\frac{1}{p_r}\right)$$

Examples

• ex factor $n=36$
  • Factor step
    • $36=2^2\times 3^2$
  • Apply formula
    • $\phi (36)=36\left(1-\frac{1}{2}\right)\left(1-\frac{1}{3}\right)=12$
  • Hence 12 positive integers ≤ 36 that are coprime to 36.
• ex factor $n=100$
  1. $100=2^2\times 5^2$
  2. $\phi (100)=100\left(1-\frac{1}{2}\right)\left(1-\frac{1}{5}\right)=40$
• multiplicative inverses: just means reciprocal or $x^{-1}$

Extended Euclid’s algorithm

• GCD?
• Euclid’s algorithm (normal) Finds GCD of 2 ints

int  EuclidAlgo(int m, int n){
    if(n == 0) return m;
        return greatestCommonDivisor(n, m % n);
}

Euler’s Theorem

• For every $a$ and $n$ that are relatively prime
  • $a^{\varphi (n)}\equiv 1(\mathrm{mod}n)$

Example

$a=3$, $n=10$ (which are relatively prime)
$3^{\varphi (10)}\equiv 1(\mathrm{mod}10)$

Verification:
$\varphi (10)=\varphi (2\times 5)=\varphi (2)\times \varphi (5)=1\times 4=4$
$3^{\varphi (10)}=3^4=81\equiv 1(\mathrm{mod}10)$

Fermat’s Little Theorem

• If $p$ is prime
  • and $a$ is a positive integer not divisible by $p$,
  • then $a^{p-1}\equiv 1(\mathrm{mod}p)$

Example

11 is prime, 3 not divisible by 11,
so $3^{11-1}=59049$ $(=5368\times 11+1)\equiv 1(\mathrm{mod}11)$

public key crypto

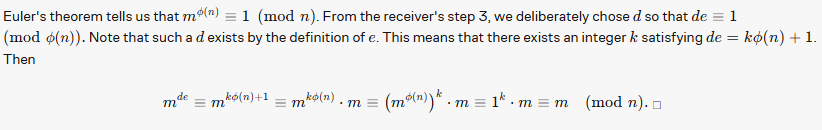

RSA (mod inverse thingy)

Secure cos hard 2 factor large n

• Length 2048 (see table if this differs that’s right)
• Encrypt w/ pub key, decrypt w/ private
• Auth: Sign w/ private, verify w/ public
• Algo:

1. Receiver chose 2 large prime num $p$ & $q$. Product, $n=pq$, = $\frac{1}{2}$ of public key
2. Receiver calc $\varphi (pq)=(p-1)(q-1)$ & pick num $e$ relatively prime to $\varphi (pq)$. $e$ usu lrg tho can be as small as 3 $e$ will be the other half of the public key.
3. Receiver calc mod inverse $d$ of $e$ mod $\varphi (n)$. $de\equiv 1(\mathrm{mod}\varphi (n))$. $d$ = private key
4. Receiver distribute both parts of public key: $n$ and $e$. $d$ kept secret

Diffie-Hellman key negotiation

• nego shared secret over pub comms but DOES NOT provide auth!
• Both combine their secret keys to create new key
  • A&B chose large prime $p$ & num $g$ s/t $1<g<p$, can b public, A&B hv secret $n,m$
  • A sen B $g^n(\mathrm{mod}p)$ and B OPA
  • A&B computes $g^{mn}(\mathrm{mod}p)$
  • Ex
    • $p=191$ and $g=2$.
    • A pick 42 & B 33
    • A computes $2^{42}\equiv 20(\mathrm{mod}191)$ &B computes $2^{33}\equiv 103(\mathrm{mod}191)$.
    • Send results 2 e/o
    • A recv 10, computes $103^{42}\equiv 115(\mathrm{mod}191)$, & B computes $20^{33}\equiv 115(\mathrm{mod}191)$ done!

Proof

Esentially being asked to prove $(g^b\mathrm{mod}p{)}^a\mathrm{mod}p=(g^a\mathrm{mod}p{)}^b\mathrm{mod}p$

where p is a prime number, g is a primitive root of p, and a and b are integers.

You can expand $(g^b\mathrm{mod}p)$ as $g^b+pK$ by the definition of $\text{mod}$.

Then $(g^b+pK{)}^a=g^{ab}+(\genfrac{}{}{0ex}{}{a}{1})g^{(a-1)b}pK+\dots +(pK{)}^a$

Since all but the first of the terms in the binomial expansion contain a factor of $p$, $(g^b\mathrm{mod}p{)}^a\equiv g^{ab}(\mathrm{mod}p)$

• discrete log problem
  • Computing exponent $n$ $\equiv$ “mod-$p$ base-$g$ logarithm” of $g^n$ but ! possible
  • There is no known algorithm for efficiently computing discrete logs

Wat if w/ OTP?

• Agree on rand key?

1. A gen random key $S$ w/ OTP key $A$ $E_A(S)=A\oplus S$ sen 2 B
2. B get $E_A(S)$ encrypt w/ OTP key $B$:
   $E_B(E_A(S))=B\oplus (A\oplus S)=A\oplus B\oplus S$ sen to A
3. A decrypt msg w/ own key $A$: $D_A(E_B(E_A(S)))=(A\oplus B\oplus S)\oplus A=B\oplus S$ , sen 2 B
4. B do same $D_B(B\oplus S)=(B\oplus S)\oplus B=S$ rslt in same shared secrety key

---

Secure against open channel? No!

Open ca see all thre msg

• $X_1=A\oplus S$
• $X_2=A\oplus B\oplus S$
• $X_3=B\oplus S$ Rslt can compute:

1. $X_1\oplus X_3=(A\oplus S)\oplus (B\oplus S)=A\oplus B$
2. $X_2\oplus (A\oplus B)=(A\oplus B\oplus S)\oplus (A\oplus B)=S$

authy protocals

• 2 methods
• m1 1. A&B -m rand nonce $R_1$ encrypt w/ B pub key: $K_{Bob-P}(R_1)$ (2 rounds) 2. Sesh key derived as $H(R_1\oplus R_2)$, whr $H$ = hash func 3. atker need 2 find A&B 2 get $R_1$ & $R_2$, resilient vs single-pt fail.
• m2
  1. A&B perform DH key exchange rslt in shared secret
  2. A&B sign the quantities they send (e.g., $g^a$ and $g^b$) w/ private keys
  • Forward secrecy of DH w/ auth frm digital sigs, prot vs MITM
• mutural authy, Both parties prove e/o, req sesh key estab
• reflect atk
  • prevent: make A&B hv diff challenge
  • initiator 1st 2 prove id
  • MUST distinguish between initiator and responder (directionality)
  • Old keys must not be used, keys linked tgt
• MITM
  • attacker constructs patterns that propagate from both ends to the middle of the cipher, in some cases by partial key-guessing

KDC/PKI (no need full steps)

Literially just key infrastructure they dont rly do anything else, no decryption, no telling u what keys to use etc

• Key Distribution Center (KDC)
  • Representative solution: Kerberos
  • Use Secret key cryptography
  • Simplier but single point of fail
  • all usrs must trust kdc
  • easily scale, centralized key management
• Public Key Infrastructure (PKI)
  • Based on public key cryptography
  • contains:
    • digital cert aka pub key cert
    • Private key tokens
    • Registration authority,Certification authority
    • Certification management system
  • disadvantages
    • Speed, Private Key Compromise, expesive setup but cost effective long run.
    • relies on relies on Certificate Authorities to issues/manage\

Digital certs

• Certificates issued by PKI Digital certificates vs digital signature
  • certs issued by PKI CA validate pub key+id
  • signatures auth+ prot usr msg. Small amnt of usrs can issue these certs, centralized

Needham Schroeder protocol

• cryptographic protocol used for mutual authentication and establishing a shared secret key between two parties
• 2 methods
  • PGP
    • (A identifies itself and sends a nonce, encrypted with B’s public key)
    • B proves receipt of N_A and sends its own nonce back
    • A confirms receipt of N_B, proving it’s alive
  • KDC
    • requests session key to communicate
    • KDC replies with session key and ticket
    • A forwards the ticket to B
    • B challenges A with a nonce encrypted using session key
    • A proves knowledge of session key by modifying and returning nonce

Kerberos

• Goals: User server mutual auth
• auth once to service multiple servers
• scale to large n of users/servers
• belong to KDC
• uses only secret key (3DES/AES)
• alice auth ot kdc, server

SSL/TLS

how shit comms w/ e/o in web

• Secure Sockets Layer and Transport Layer Security protocol
  • Handshake protocal
    • PPG, shared secret btwn both usrs
  • Record protocal
    • Use shared secret 2 estab tunnel
    • symmetric encryption (like AES) and MACs, does encryption aft handshake
• TLS = upgraded ver of SSL
  • One round trip → lower latency, encrypted handshake, modern ciphers Autonav port numbers (implement later with websockeet)
• Port 80 = HTTPw/ TCP, Port 443 = HTTPS

Other stuff

Homomorphic Encryption

• motivation and applications?
  • arbitrary operations (such as addition or multip
  • lication) apply 2 encrypted data (note that RSA CANNOT do multiplication and hence not fully homomorphic)
  • need to perform computations on encrypted data without decrypting it
• basic operations
• Why do we need to add noise, and how to do the noise-deduction
  • Noise results in GCD attack not working or any attack
  • Noise is small term added into the ciphertext while encrypting.
  • decryption function does not work if the noise is greater than a certain maximum value
  • bootstrapping (noise-deduction) is applying the idea (due to Gentry) of homomorphically evaluating the decryption operation using an encryption of the secret key.
    • Fully resets noise, high cost
    • homomorphically decrypts a ciphertext and re-encrypts it—effectively resetting the noise

Tor

• What information could be disclosed when you visit a website?
  • identity,apps/browsers/device/location/activity/data
• What’s Tor?
  • client proxy
  • NSA can track down and see people who use it
• what crypto Tor uses?
  • SHA-1, SHA-256, and SHA3-256
• Why can Tor hide some information?
  • First node still knows ur IP! (guard node)
  • randomly selected nodes within the Tor network

Block chain

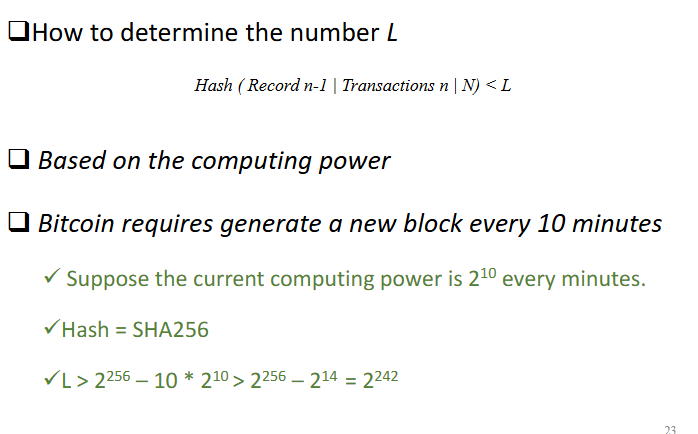

• Proof of work? (central idea)
  • solution that is difficult to find but is easy to verify
• Basic architecture, centralized or distributed?
  • distributed system need to agree on following:
    • initial sys state
    • history of transactions
    • current sys state
  • Blockchain gets the functionality of a CA, withoutneeding a CA
  • Blocks = recorded data, hashed chain = connectors
  • 2 parties solve same time? Node finds best solution to N makes them winner

Sample Qs

Section 1

• Which of the following is NOT computationally difficult? Verifying large primes
• What is false abt tor netowrk?
  • No tor node can know ur IP (first node knows)

Section 2

1. $2^{-1}\mathrm{mod}3$

We want to find $x$ such that $2x\equiv 1(\mathrm{mod}3)$.

Try small values:

• $2\cdot 1=2\not\equiv 1$
• $2\cdot 2=4\equiv 1(\mathrm{mod}3)✓$

Answer: $2^{-1}\mathrm{mod}3=2$

2. $23^{81}\mathrm{mod}55$

Factor: $55=5\cdot 11$

Step 1: Mod 5
$23\equiv 3(\mathrm{mod}5)$
$\varphi (5)=4\Rightarrow 81\equiv 1(\mathrm{mod}4)\Rightarrow 3^{81}\equiv 3(\mathrm{mod}5)$

Step 2: Mod 11
$23\equiv 1(\mathrm{mod}11)\Rightarrow 1^{81}=1(\mathrm{mod}11)$

Step 3: Chinese Remainder Theorem
Find $N$ such that:
$N\equiv 3(\mathrm{mod}5)$ and $N\equiv 1(\mathrm{mod}11)$

Try $N=1+11k$:

• $k=2\Rightarrow N=23\equiv 3(\mathrm{mod}5)✓$

Answer: $23^{81}\mathrm{mod}55=23$

3. $\phi (55)$

Since $55=5\cdot 11$ (distinct primes):
$\phi (55)=\phi (5)\cdot \phi (11)=(5-1)(11-1)=4\cdot 10=40$

Answer: $\phi (55)=40$

4. $\gcd (333,121)$

Use the Euclidean Algorithm:
$333=2\cdot 121+91$
$121=1\cdot 91+30$
$91=3\cdot 30+1$
$30=1\cdot 30+0$

Answer: $\gcd (333,121)=1$
