Arika Khor, 113551048

Introduction

Traditionally, SPAKE2 instances require both sides to agree on two key items: a shared password, and what roles both will play (either as the original client or server). The protocol requires atleast one message exchange to establish the one time unique session key (a second round is optional to check key-confirmation). Once both users obtain the given session key, and an encryption method of the server’s choice, they can then proceed to send messages over a given websocket that the server setups. (Hence the session key acts as the generator for the shared secret key used to encrypt messages). Each message is then encrypted by the session key, and will last for the lifetime of the conversation. Our design was inspired by magic wormhole project.

Of course, the presented limitations of pre-agreement information can be worked around (as will be discussed in a later section), though of course, those workarounds come with their tradeoffs. To start off we will first start with how a traditional SPAKE2 instance is setup.

SPAKE2 Setup

Initialing SPAKE2 is a pretty simple process. Alice and Bob both have the same principles in setting up, though one of them will use SPAKE2_A and the other SPAKE2_B (as part of the agreed items beforehand):

from spake2 import SPAKE2_A #in this case we are the client
connection = socket.create_connection((host, port))

s = SPAKE2_A(password) # SPAKE2 protocal occurs
msg_a = s.start()  # Generate message to send
send(connection, msg_a) # sends the message

msg_b = receive(connection)  # recieve B's message
key = spa.finish(msg_b)#generate the key
assert(recv_B != expected_confirm_B) #ensure keys equate to each other

Given security is our main priority, we also added the optional secondary key-check-confirmation doing something along the lines of the following psudeo-like code:

confirm_A = HKDF(...)
expected_confirm_B = HKDF(...)
send(confirm_A)
confirm_B = receive()
assert confirm_B == expected_confirm_B

Which tests for identical keys. We will cover what and how HKDF is made later.

Additionally we wan to settle not having to establish who is SPAKE2_A, so we implement SPAKE2_Symmetric, which removes the issue of agreeing beforehand which roles both users will play. This plays out to something like such:

s1 = SPAKE2_Symmetric(agreed_password) # Create password
outmsg1 = s1.start() #create msg
send(outmsg1)# send msg

inmsg2 = receive() # recieve the other users msg
key = s1.finish(inmsg2) #verify

Though for our purposes, this isn’t exactly needed, we wanted to keep it simple with only one file/program to run out of and not give the user too much choice/option.

Encryption

We chose the standard cryptography python import from pip install cryptography.hazmat.primitives, given that we are dealing with the raw types.

To encrypt our messages, we follow the following model

SPAKE2 ⇒ shared secret
HKDF(shared secret) ⇒ strong symmetric key
AES-GCM(message, key from HKDF) ⇒ encrypted message

The SPAKE2 part is pretty simple as we saw above.

To create our we chose HMAC-based Extract-and-Expand Key Derivation Function (HKDF) along with a basic SHA256 hash function and add salt results in a unique string every time, even if the same message is sent for n-large times, which leads us to the following implementation:

def hkdf_expand(session_secret_key, info, length=32):
    salt = os.urandom(16)
    return HKDF(
    algorithm=hashes.SHA256(),
    length=length,
    salt=salt,
    info=info.encode()
).derive(session_secret_key)

We used .encode() since we wanted to pass the info through without having to specify the info string to be in byte form. Given HKDF is HMAC-based, there is already in-built padding at both steps, and is much more than 56 bits (as noted by a length of 32 bytes or 256 bits).

From cryptography.io docs, we see the use cases for HKDF, in this case being quite fitting for our use case (if not a bit overkill):

Cryptographic key derivation

Key derivation functions derive bytes suitable for cryptographic operations from passwords or other data sources using a pseudo-random function (PRF).

For Cryptographic key derivation:

Deriving a key suitable for use as input to an encryption algorithm. Typically this means taking a password and running it through an algorithm such as PBKDF2HMAC or HKDF. This process is typically known as key stretching.

HKDF (HMAC-based Extract-and-Expand Key Derivation Function) is suitable for deriving keys of a fixed size used for other cryptographic operations.

After creating the HKDF session key, we used AES-GCM to actually encrypt each of our outbound messages.

def encrypt_data(data, key):
    """
    Encrypts data using AES-GCM.
    :param data: Data to encrypt
    :param key: 32-byte encryption key
    :return: (iv, ciphertext, tag)
    """
    iv = os.urandom(12)# salt the AES
    cipher = Cipher(algorithms.AES(key), modes.GCM(iv))
    encryptor = cipher.encryptor()
    ciphertext = encryptor.update(data) + encryptor.finalize()
    return iv, ciphertext, encryptor.tag

def decrypt_data(iv, ciphertext, tag, session_key):
    """
    Decrypts data using AES-GCM.
    :param iv: esentially salt
    :param ciphertext: Encrypted data
    :param tag: auth tag from original HKDF key
    :param session_key: key gen from HKDF
    :return: Decrypted data
    """
    cipher = Cipher(algorithms.AES(session_key), modes.GCM(iv, tag))
    decryptor = cipher.decryptor()
    return decryptor.update(ciphertext) + decryptor.finalize()

Once one of the users end the session, the key should no longer be used and should be considered exposed. If both users wish to contact each other again they should go through the same protocal of a shared password and setting up the initial connection again. Hence, the keys used to communicate should be treated as one-time throwaway keys, and are “updated” (more accurately remade) everytime the connection is re-established.

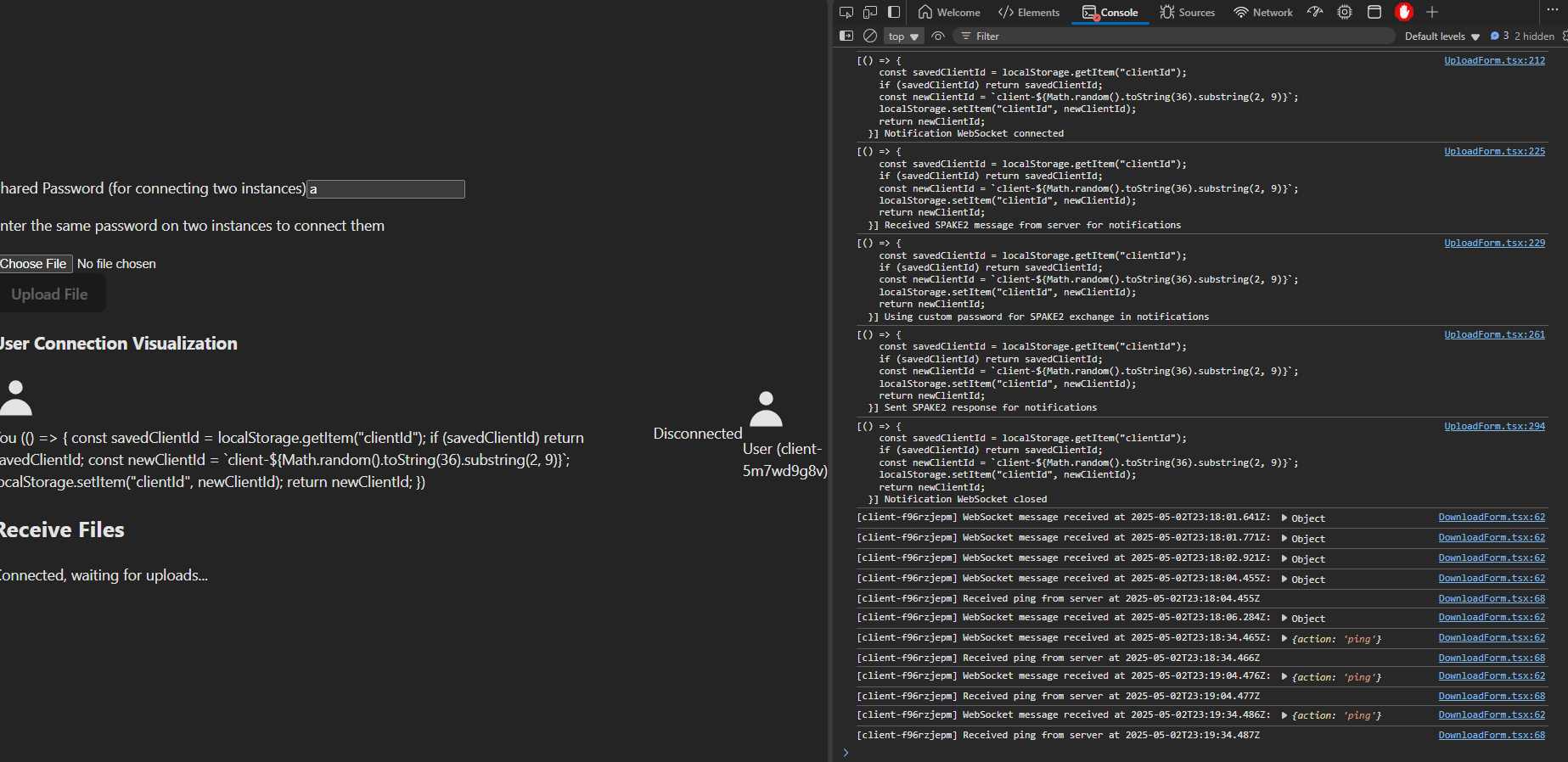

WebSockets & Frontend Implementation

In order to actually communicate with each other, the server side sets up a websocket server, and the client connects to it. After they exchange their one-time password exchange, they both generate some secret key used for that session only. Hence, both users are assumed to be running with the same codebase, and hence will be sharing the same UI setup. After this, the UI/frontend portion takes care of how messages are actually transmitted (given both are using a one-time generated temporary key).

The connection is established thru user A establishing a websocket server. User B connects to the server and both generate the session key locally using their pre-agreed upon password. The keys are generated and checked as described previously and both users can now start to talk to each other with each message being encrypted and decrypted by the same secret key.

Extras

Establishing a shared password over insecure channels (+5pts)

To share the initial key over an insecure channel is quite simple. Given only a max of 2 users can talk to each other, Alice and Bob can either call, meet in person, or use some end to end encrypted messaging to text each other a known password. This password could be directly exposed or something that both of them know with a hint. While directly exposing the agreed upon password will easily lead to it being leaked in the initial run, there are several factors that make this method possible to establish over insecure channels (even though PAKE is not built for this):

The session key generated is only viewable to those who have the initial agreed upon password at the correct time.
Per each attempt an active attacker requires interaction with a legitimate party, with no way to verify the password to work offline.
The session key should never be exposed thru wire, where only the agreed upon password grants only both users the session key
Both users can perform a third check round of verification by exchanging a message signed with their PGP keys. Once both users receive these messages, they can check the signature to ensure that it is indeed the correct user they are talking to.
Without knowledge of the password, an attacker cannot successfully mediate the exchange between both users.

New Algo design: (+5pts)

(Given it only said to design and justify but no need to use in the codebase)

Say we wanted to further encrypt our current key for some reason. To start, instead of generating just one session key, we generate 2 session keys (or as we call them for this purpose ciphers). We create an encryption by running these 2 ciphers through, then XOR’ing both of them together to create our new cipher (aka session key). In this manner, the attacker would need to break both encryption schemes to recover the plaintext, assuming at least one cipher remains secure. To implement as such, say we hsecpmoave 2 HKDF instances is as K1 and K2. We use a bitwise XOR operation to create our final key K_3 and simply use that key instead of originally only using K1 to encrypt/decrypt. Both the SALT and info for K1 and K2 must be different. Due to HKDF being relatively lightweight, the additional processing time shouldn’t affect processing times in any sigificant capactity,

K_3 = bytes(a ^ b for a, b in zip(K1, K2))

However, given we are using PAKE with well-known ciphers, there really isn’t much reason to do this (save for the fact of extra credit).
